Prefabricated folding container houses can be adapted to different uses and places, such as temporary housing, offices, commercial exhibition halls, construction site dormitories, etc. They can use a modular design and can be combined into different layouts and sizes as needed to meet different needs. At the same time, this kind of house can also be expanded and transformed according to needs.
Prefabricated folding container houses need to consider structural stability, windproof and waterproof, thermal insulation, ventilation and other factors to ensure the comfort and safety of living and working. In addition, relevant building codes and environmental regulations need to be complied with to ensure the legality and environmental friendliness of the building.
In conclusion, the prefabricated folding container house is a flexible and multi-functional construction solution that can meet the needs of temporary housing and office space in a short period of time. They are ideal for response disaster relief, temporary events and rapid construction.
Item No :
FC14Order(MOQ) :
5Payment :
Telegraphic TransferProduct Origin :
ChinaColor :
CustomizedShipping Port :
Guangzhou/Shenzhen/FoshanLead Time :

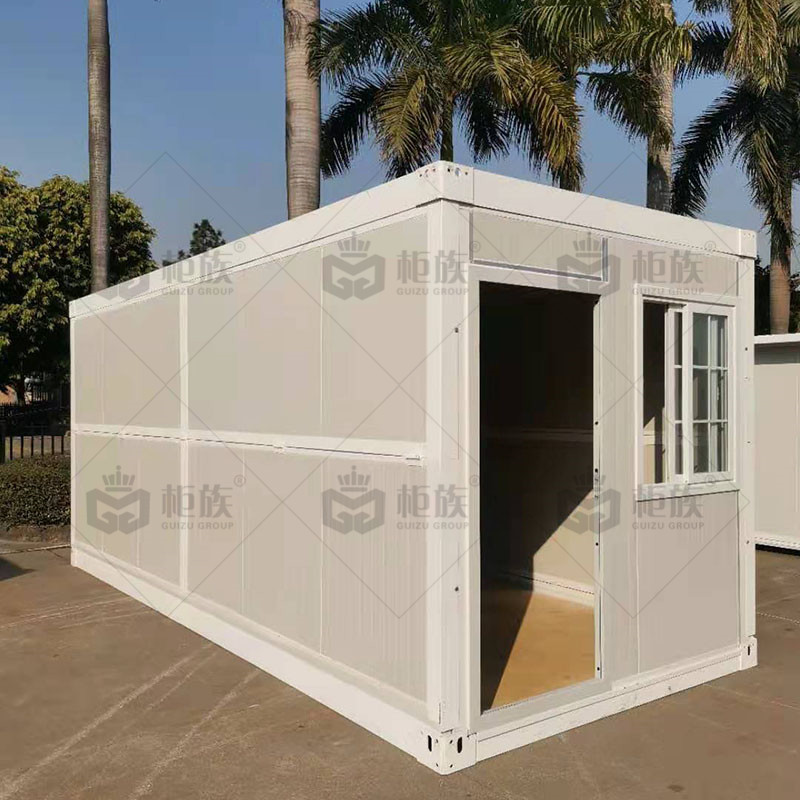

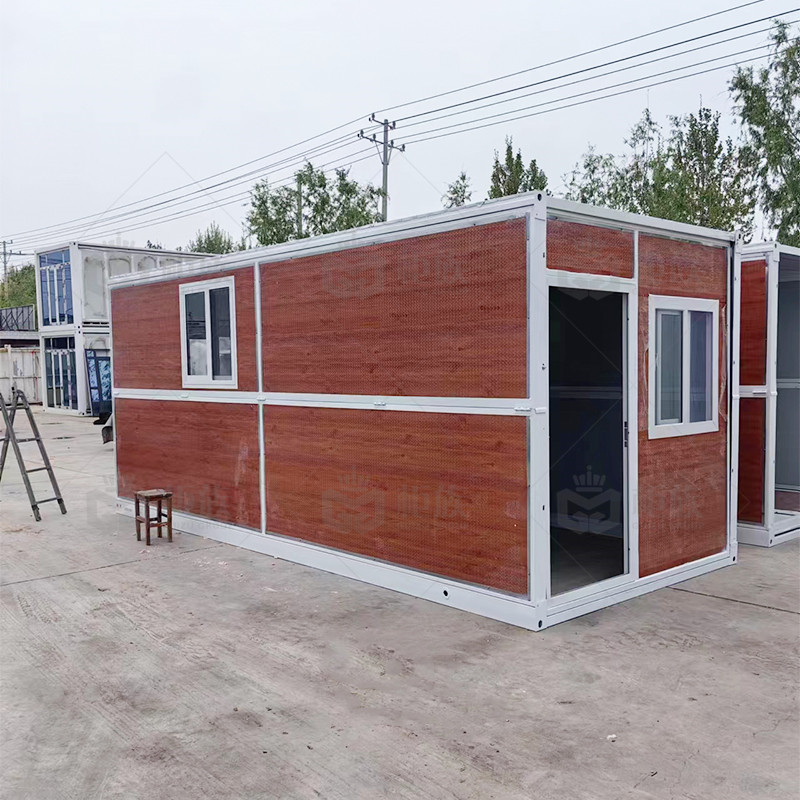

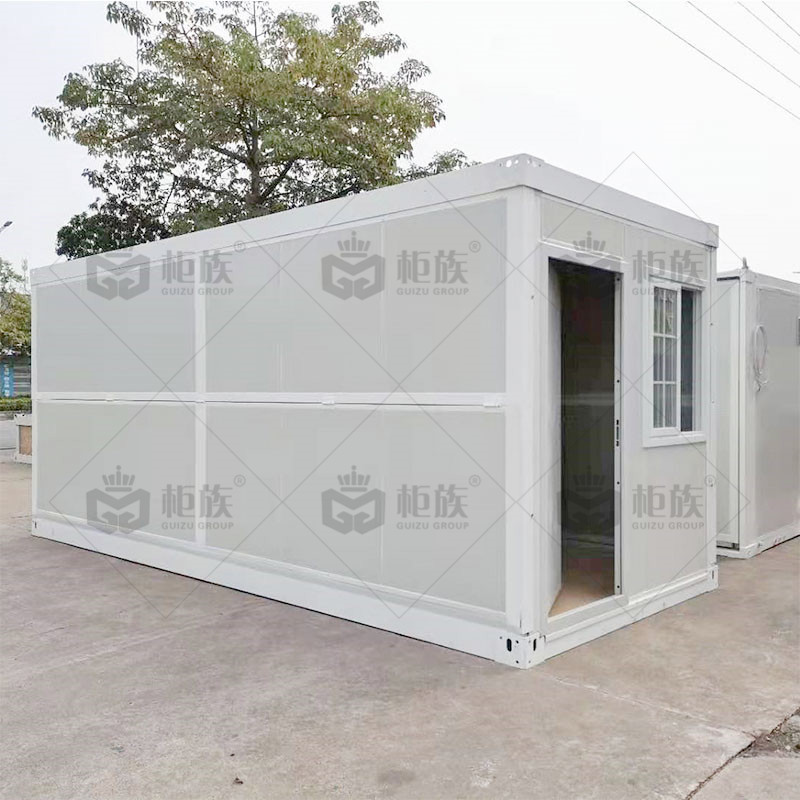

3-15Waterproof Recycled Prefab Folding 20ft 40ft Container House For Sale
Prefabricated folding container house is a construction method that combines container and folding technology. It has the characteristics of fast construction, easy transportation and reusability. Such houses usually use standard-sized shipping containers as basic building units, which are prefabricated and assembled in factories, and then can be quickly folded and unfolded for transportation and erection.
Product Specification
Configuration - Standard Folding Container |
||
Specification |
external dimension (mm) |
5800*2480*2560 |
Internal dimension (mm) |
5640*2320*2420 |
|
Package dimension (mm) |
5800*2480*410 |
|
Weight |
≈1300KG |
|
Index |
Structural Design Service Life |
10 years |
ground live load |
200kg/㎡ |
|
roof live load |
100kg/㎡ |
|
wind load |
Grade 8 |
|
Seismic Fortification Intensity |
Grade 10 |
|
Main structure |
Top frame |
Main beam Q235B rectangular square tube |
Secondary beam Q235B rectangular square tube |
||
Secondary beam Q235B rectangular square tube |
||
Bottom frame |
Main beam Q235B rectangular square tube |
|
Main beam Q235B rectangular square tube |
||
Secondary beam Q235B rectangular square tube |
||
side |
Main beam Q235B galvanized P-type pipe |
|
front and back |
Main beam Q235B galvanized P-type pipe |
|
corner |
Q235B thickness 8mm |
|
folding hinge |
Galvanized hinge, high strength |
|
Roof |
Integral frame protective coating |
Electrostatic spray/straight white plastic powder |
external roof |
Galvanized sheet |
|
interior ceiling |
Color steel veneer V831,0.37mm |
|
Wall panel |
Insulation glass wool |
glass wool roll 50mm |
side wall |
0.3/0.3 75mm Thick glass wool composite board |
|
Front and rear wall panels |
0.3/0.3 75mm Thick glass wool composite board |
|
Floor |
cement mix floor 15mm |
|
Electrical System |
Electrical wiring is installed in strict accordance with moisture-proof specifications, and all electrical products meet CE certification. Connect the circuit according to the circuit engineering specification, indoor: 4² national standard annealed copper wire, 1 32A circuit breaker, 1 three-hole air-conditioning socket, 2.5² socket incoming line, 1 five-hole single-open socket, 1 five-hole socket, 1 LED light |
|
door |
High quality anti-theft door (warm white) size: 860mm*1990mm |
|
window |
920*920 single glass sliding window plastic steel window with guardrail screen window, glass thickness 4mm |
Interior design
product installation
The production and assembly of all the components of the folding container house are prefabricated at the factory. You can install the Folding House on the job site in just four steps.
1. Use the crane to live its roof. Lift its roof slowly until the house is unfolded and stop the crane there.
2. Expand the front and back walls of the container. Push the front and back from inside, and make it stand in the correct place.
3. Use the bolts to fix the whole structure. There will be premade bolt holes on the columns, and we will provide enough bolts for you to fix them.
4. Install the door lock. To prevent the door lock from damaging the ceiling during the folding process, we will not install the door lock in advance. If you need to move the house to another place and need to fold it, please remember to take down the door lock in advance also.
Supporting Facilities
