Folding container dormitory can be used in temporary accommodation, field camping, emergency rescue and other occasions. In terms of temporary accommodation, the folding container dormitory can be used in student dormitories, construction site worker dormitories and other places to solve the accommodation problem conveniently and quickly. In terms of camping in the wild, the folding container dormitory can be used as a temporary accommodation tool, which can be quickly set up, easy to disassemble, and easy to carry. It is suitable for outdoor activity enthusiasts. In terms of emergency rescue, folding container dormitories can be used as temporary accommodation in wartime emergency refugee camps and disaster rescue sites, providing basic accommodation guarantees for disaster victims. In short, the folding container dormitory can exert its superior convenience and practicality in many aspects.
Item No :
FC02Order(MOQ) :
5Payment :
Telegraphic TransferProduct Origin :
ChinaColor :
CustomizedShipping Port :
Guangzhou/Shenzhen/FoshanLead Time :
3-15Moisture proof creative reused prefab folding 20ft 40ft container dormitory house

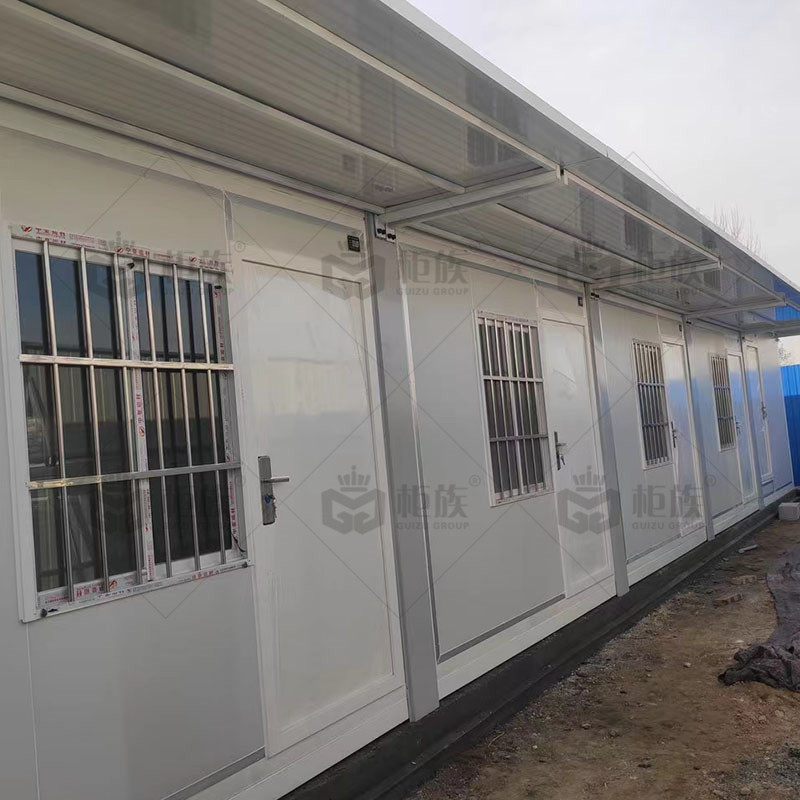

Folding container dormitories are mostly used in construction sites, disaster areas, tourist attractions and other places, and have gradually been used in student apartments and unit dormitories. Its advantages include flexibility, economy, speed, portability, and easy maintenance, etc., which solve the problems of dormitory construction and management to a certain extent.
Product Specification
|
Configuration - Standard Folding Container |
||
|
Specification |
external dimension (mm) |
5800*2480*2560 |
|
Internal dimension (mm) |
5640*2320*2420 |
|
|
Package dimension (mm) |
5800*2480*410 |
|
|
Weight |
≈1300KG |
|
|
Index |
Structural Design Service Life |
10 years |
|
ground live load |
200kg/㎡ |
|
|
roof live load |
100kg/㎡ |
|
|
wind load |
Grade 8 |
|
|
Seismic Fortification Intensity |
Grade 10 |
|
|
Main structure |
Top frame |
Main beam Q235B rectangular square tube |
|
Secondary beam Q235B rectangular square tube |
||
|
Secondary beam Q235B rectangular square tube |
||
|
Bottom frame |
Main beam Q235B rectangular square tube |
|
|
Main beam Q235B rectangular square tube |
||
|
Secondary beam Q235B rectangular square tube |
||
|
side |
Main beam Q235B galvanized P-type pipe |
|
|
front and back |
Main beam Q235B galvanized P-type pipe |
|
|
corner |
Q235B thickness 8mm |
|
|
folding hinge |
Galvanized hinge, high strength |
|
|
Roof |
Integral frame protective coating |
Electrostatic spray/straight white plastic powder |
|
external roof |
Galvanized sheet |
|
|
interior ceiling |
Color steel veneer V831，0.37mm |
|
|
Wall panel |
Insulation glass wool |
glass wool roll 50mm |
|
side wall |
0.3/0.3 75mm Thick glass wool composite board |
|
|
Front and rear wall panels |
0.3/0.3 75mm Thick glass wool composite board |
|
|
Floor |
cement mix floor 15mm |
|
|
Electrical System |
Electrical wiring is installed in strict accordance with moisture-proof specifications, and all electrical products meet CE certification. Connect the circuit according to the circuit engineering specification, indoor: 4² national standard annealed copper wire, 1 32A circuit breaker, 1 three-hole air-conditioning socket, 2.5² socket incoming line, 1 five-hole single-open socket, 1 five-hole socket, 1 LED light |
|
|
door |
High quality anti-theft door (warm white) size: 860mm*1990mm |
|
|
window |
920*920 single glass sliding window plastic steel window with guardrail screen window, glass thickness 4mm |
|
Folding container houses have the following advantages:
1. Easy to carry: because the folding container dormitory can be folded, it is more convenient to carry than the traditional dormitory.
2. Environmental protection: Folding container dormitories are usually made of renewable materials, which are more environmentally friendly than traditional dormitories.
3. Flexibility: The folding container dormitory can be combined freely, and modules can be added or removed according to needs, which is more flexible.
4. Economical: Folding container dormitories are usually more economical than traditional dormitories, with lower costs and simpler maintenance and maintenance.
5. Customizability: The folding container dormitory can be customized according to the needs of customers to meet a variety of purposes.

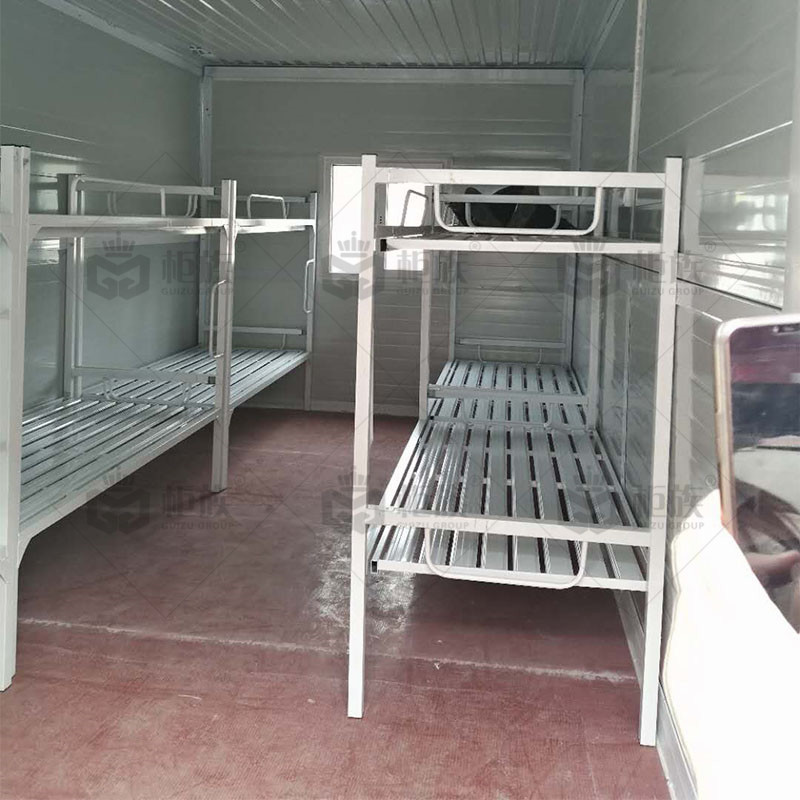

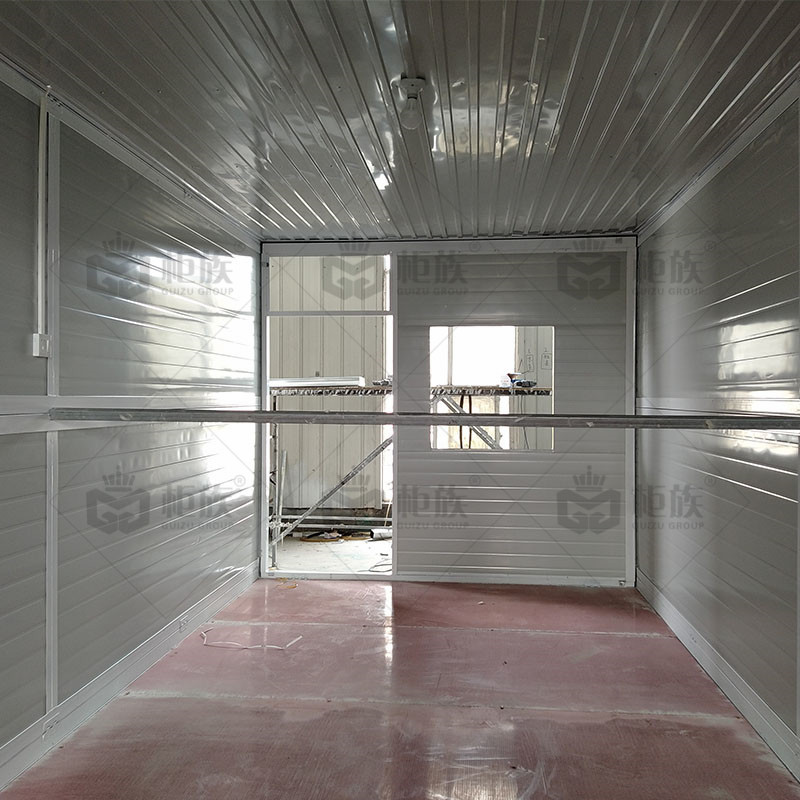

Interior design
product installation
The production and assembly of all the components of the folding container house are prefabricated at the factory. You can install the Folding House on the job site in just four steps.
1. Use the crane to live its roof. Lift its roof slowly until the house is unfolded and stop the crane there.
2. Expand the front and back walls of the container. Push the front and back from inside, and make it stand in the correct place.
3. Use the bolts to fix the whole structure. There will be premade bolt holes on the columns, and we will provide enough bolts for you to fix them.
4. Install the door lock. To prevent the door lock from damaging the ceiling during the folding process, we will not install the door lock in advance. If you need to move the house to another place and need to fold it, please remember to take down the door lock in advance also.

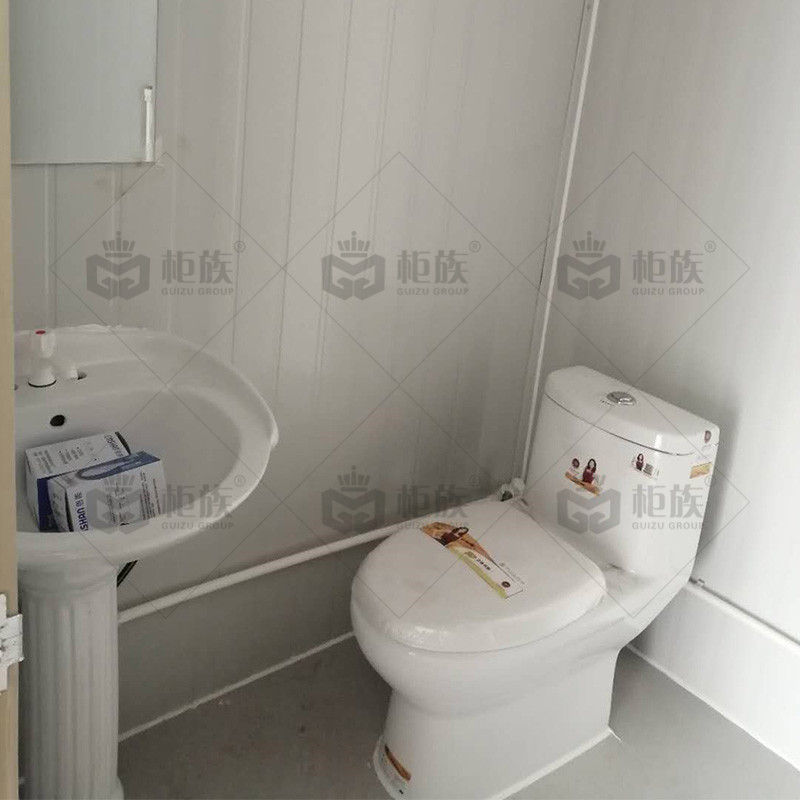

Supporting Facilities
