Prefabricated T House Mobile Dormitory are often used for construction site workers’ residences. It is not only practical, but also more affordable than other types of board houses. There is no skeleton or a little skeleton welded on site, and then the enclosure structure (color steel The composite board) is fixed to the structure.
Item No :
PTCOrder(MOQ) :
1Payment :
Telegraphic TransferProduct Origin :
ChinaColor :
CustomizedShipping Port :
Guangzhou/Shenzhen/FoshanLead Time :
3-15Easy Assembly Prefabricated House Construction Site Modular Dormitory
Prefabricated T House Construction Site Modular Dormitory are often used for construction site workers’ residences. It is not only practical, but also more affordable than other types of board houses.
Product Specification
Item No. |
Component |
specification |
1 |
Wall Panel |
50 Double Color-coated Steel EPS Sandwich Board |
2 |
Roof Title |
50 Double Color-coated Steel EPS Sandwich Board |
3 |
Partition wall |
50 Double Color-coated Steel EPS Sandwich Board |
4 |
Column |
Double C-shaped Steel Size:80*40*1.8mm |
5 |
Roof Beam |
C-Shaped Steel Size:80*40*1.8mm & 50*40*1.8mm |
6 |
Tie Rod |
φ8 |
7 |
Ground Beam |
Double C-shaped Steel Size:80*40*1.6mm |
8 |
Round Beam |
Double C-shaped Steel Size:80*40*1.6mm |
9 |
Roof Purlin |
Galvanized Angel Steel:1.5mm |
10 |
Door |
50mm Double Colored-coated steel EPS Sandwich Door Size:800*2000mm |
11 |
Window |
plastic steel window:1740*925mm |
Easy to Install
Features of Prefab Mobile Dormitory
1. It can be assembled and disassembled conveniently and quickly, and only simple tools are needed for the installation process. The average person can install 20-30 square meters per day.
2. Universal standardization can realize industrialized production.
3. Inventory, can be used multiple times, and the loss rate is low. In the construction of traditional buildings, the construction of temporary offices and living facilities for demolition should be avoided.
4. No transportation restrictions.
5. According to the needs of customers, standard modules can be used for space combination to build buildings of any size from small to kiosks, large hangars or multi-storey buildings.
6. Environmental protection. No need to use a lot of bricks, hemp, Asbestos bricks and other materials will not leave a lot of construction waste to pollute the environment. application: railways, highways, water conservancy, petroleum, commerce, tourism and military,Meeting rooms, dormitories, canteens, entertainment rooms, shops, and various Temporary Housing.

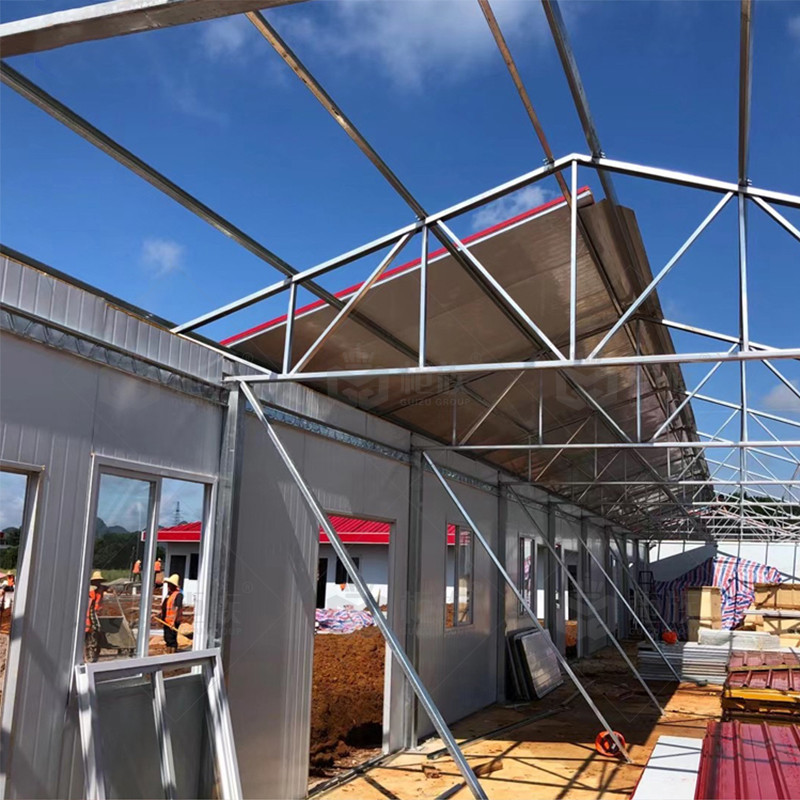

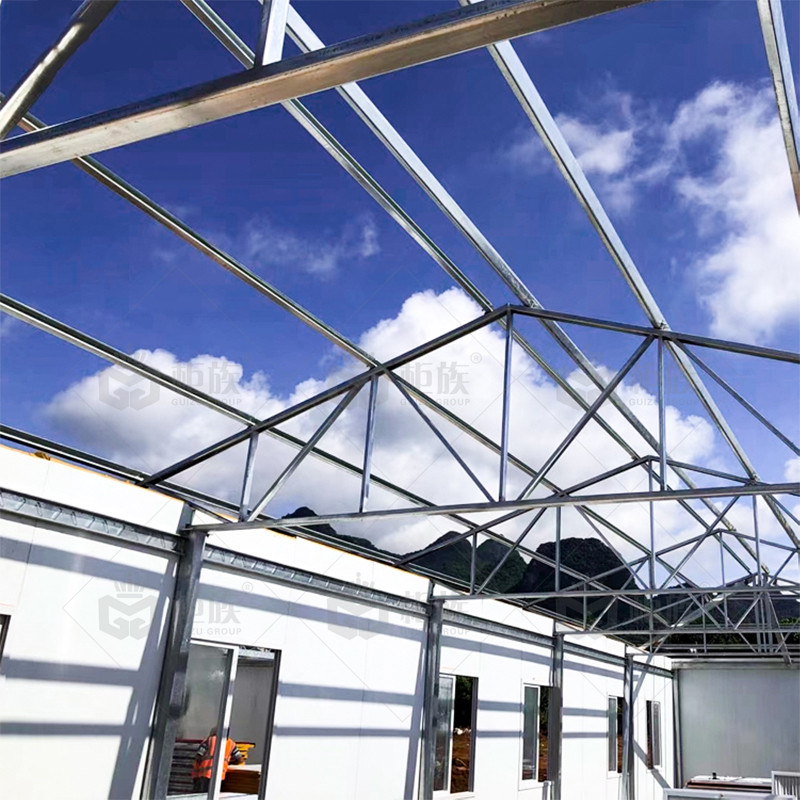

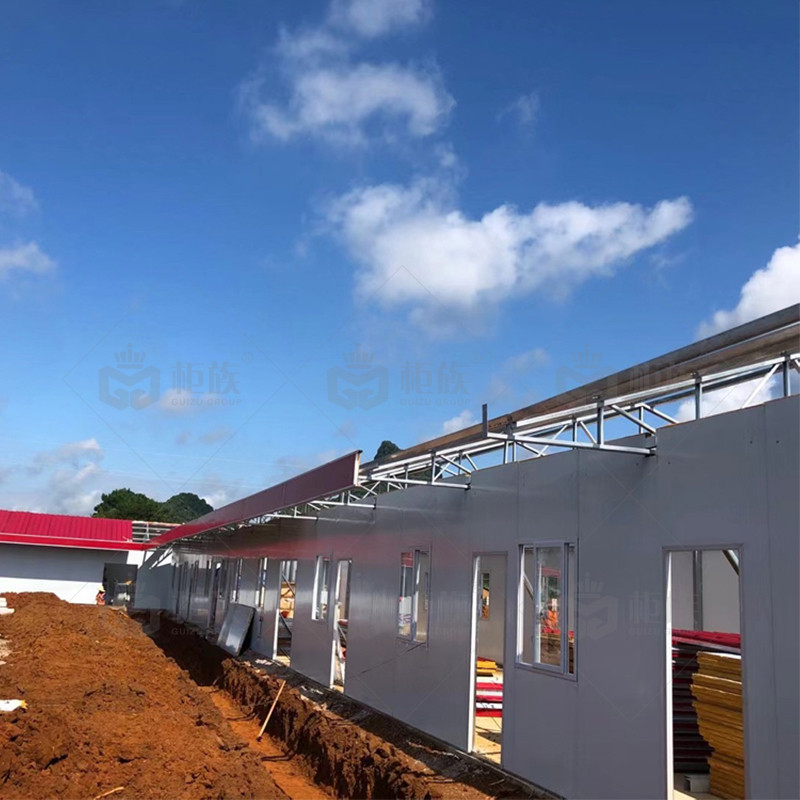

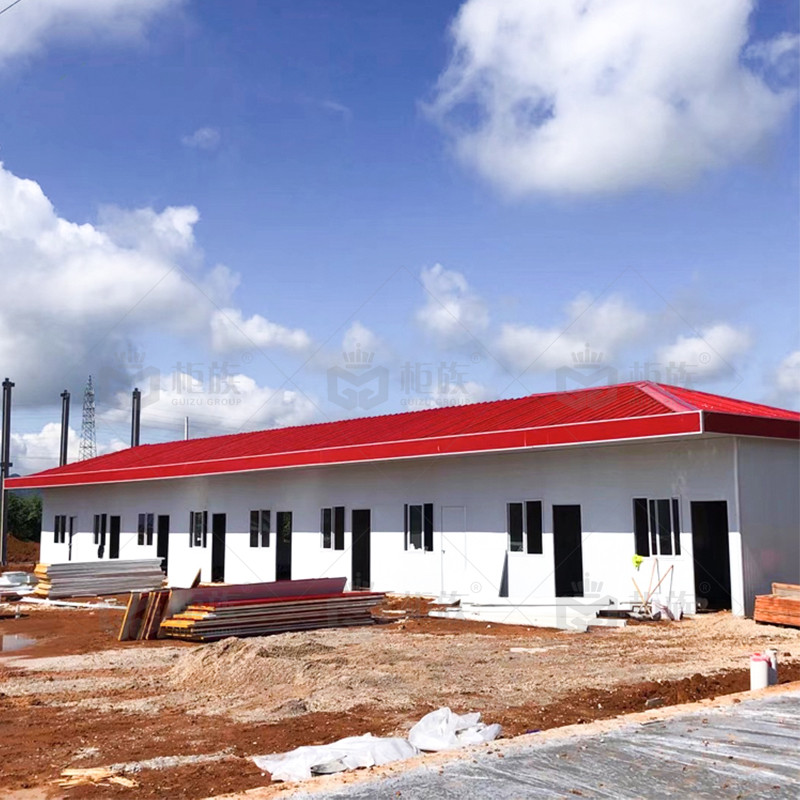

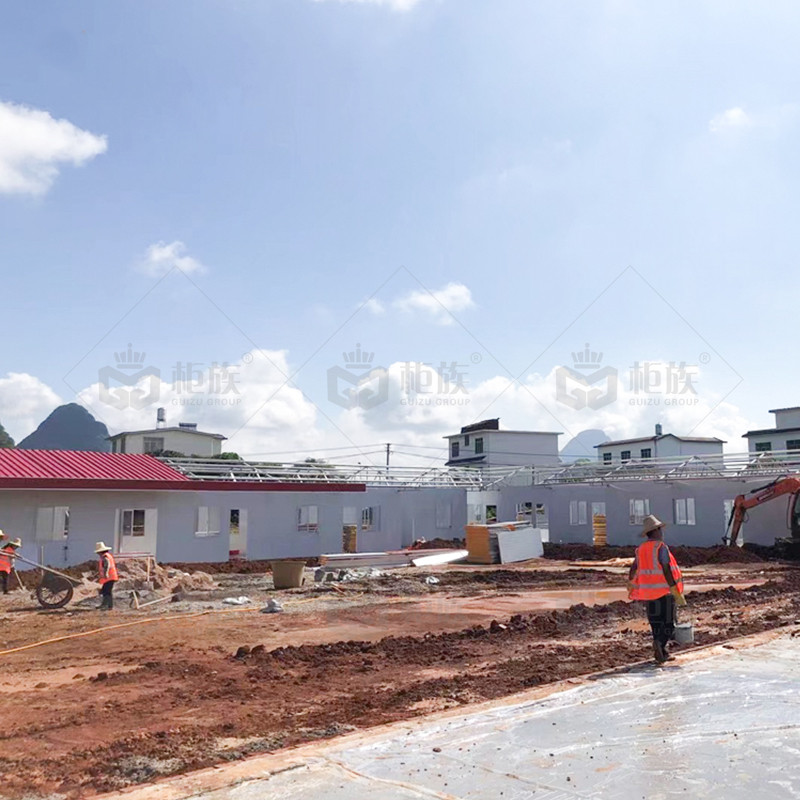

Case Show
